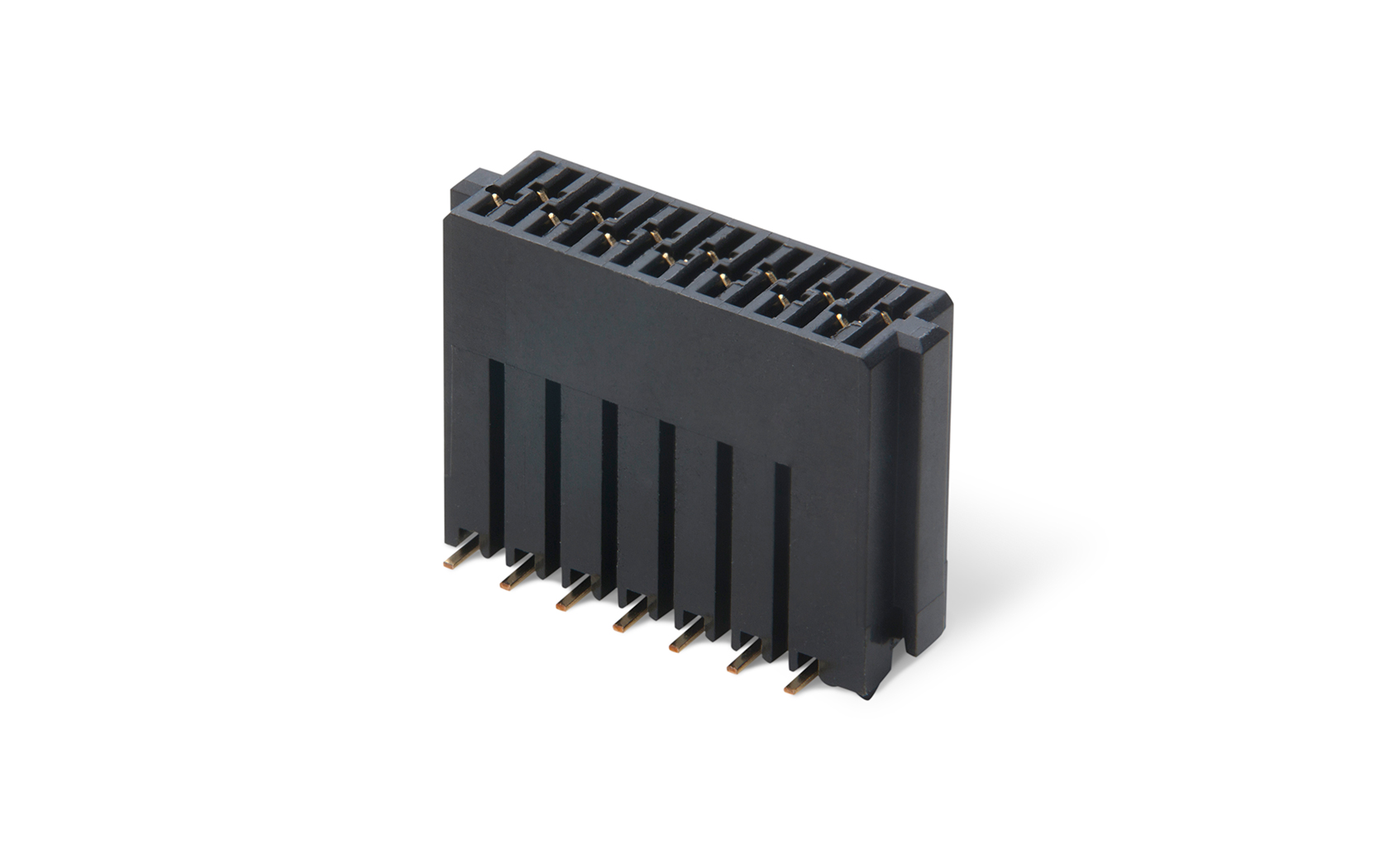

9856S Series
Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit que diatemquam veles sequam atiuagnit rem a aut libus adXimpore laborior sed moluptibus voluptate do. Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit qu
Produktinformation
| Category | Board to Board Connectors |
| Series | 9856S Series |
Detailinformationen
| Connecting Type | Socket |
| Mating Interface | Stacking |
| Contact Direction | |
| Pitch | 1 mm |
| Pin Counts | |
| Plating Thickness | 2 μm Min. |
| Signal Transmission Speed | |
| Width (Depth) | 4.5 mm |
| Rated Voltage (AC) | 125V |
| Rated Current | 1 A |
| Impedance Matching | |
| Operating Temperature Range (Max.) | +105 ℃ |
| Array | Staggered Arrangement |
| Halogen Free | No |
| 2-Point Contact | No |
| Ground Terminal | No |
| Tape | No |
| Y-Axis Floating Range | 0.5 |
| Amplitude | |
| Card (FPC) Retention Mechanism | |
| Package Quantity | 900 |
| PCB Mounting Methods | SMT |
| Connector Orientation | Vertical |
| Mating Direction | TopEntry |
| Solder Tail Pitch | 1 mm |
| Contact Plating | Gold |
| Signal Spec | |
| Length (Pitch Direction) | |
| Height | |
| Rated Voltage (DC) | 125 V |
| Withstand Voltage | 250 V (AC） |
| Contact Resistance | 50 mΩ Max. |
| Operating Temperature Range (Min.) | -40 ℃ |
| RoHS2 | Yes |
| Floating | |
| Boss Locator | Yes |
| Cap | No |
| X-Axis Floating Range | 0.8 |
| Effective Wiping Length | 0.8 |
| Durability | 30 |
| Packaging Type | Emboss |
