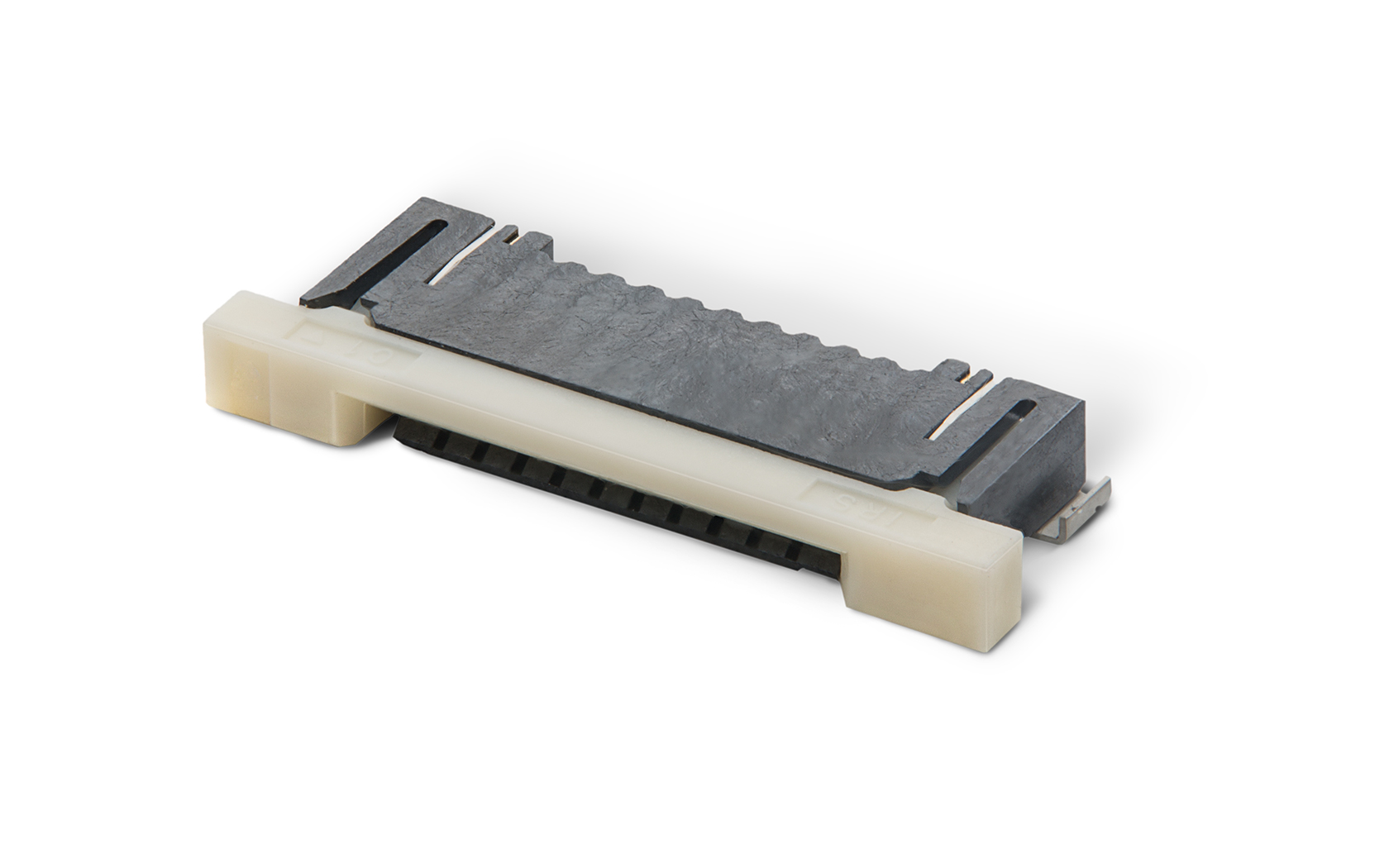

9664S Series
I-Lock
Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit que diatemquam veles sequam atiuagnit rem a aut libus adXimpore laborior sed moluptibus voluptate do. Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit qu
Produktinformation
| Category | FPC / FFC Connectors |
| Series | 9664S Series |
Detailinformationen
| Connecting Type | Socket |
| Connector Orientation | RightAngle |
| Pitch | 1 mm |
| Pin Counts | |
| Plating Thickness | 0.1 μm Min. |
| Signal Transmission Speed | |
| Width (Depth) | 7.2 mm |
| Rated Voltage (AC) | 125 V |
| Rated Current | 1 A |
| Impedance Matching | |
| Operating Temperature Range (Max.) | +105 ℃ |
| Array | Single Row |
| Halogen Free | No |
| Boss Locator | Yes |
| Wide Slider | Yes |
| Locks | ZIF/I-Lock |
| Packaging Type | Emboss |
| PCB Mounting Methods | SMT |
| Connector Direction | BottomContact |
| Solder Tail Pitch | 1 mm |
| Contact Plating | Gold |
| Signal Spec | |
| Length (Pitch Direction) | |
| Height | |
| Rated Voltage (DC) | 125 V |
| Withstand Voltage | 250 V (AC） |
| Contact Resistance | 30 mΩ Max. |
| Operating Temperature Range (Min.) | -30 ℃ |
| RoHS2 | Yes |
| 2-Point Contact | No |
| Ground Terminal | No |
| Durability | 20 |
| Card (FPC) Retention Mechanism | Yes |
| Package Quantity | 1500 |
