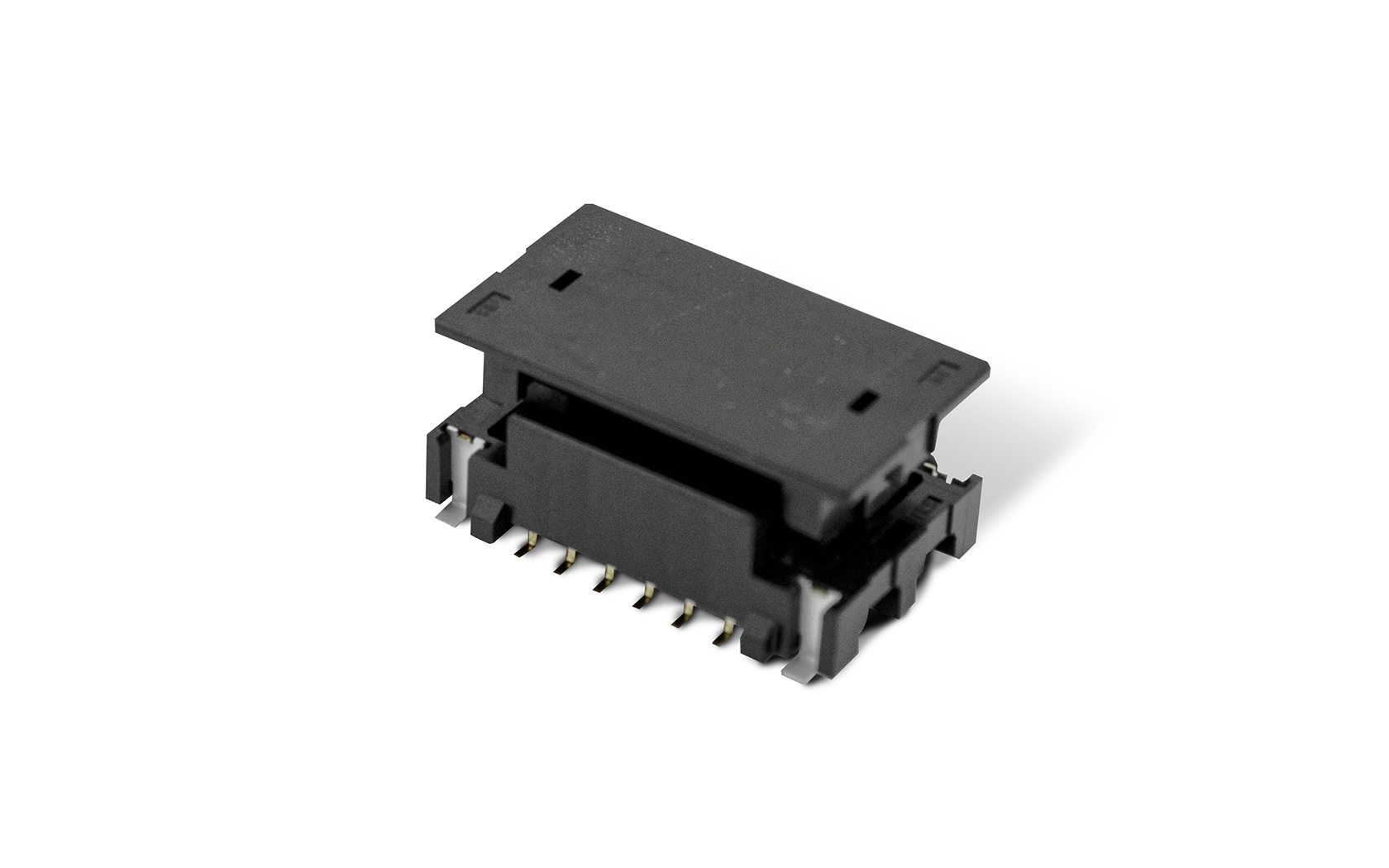

10120B Series
High Temperature Compliance / Floating / Z-move / Robot Compatible
Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit que diatemquam veles sequam atiuagnit rem a aut libus adXimpore laborior sed moluptibus voluptate do. Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit qu
Produktinformation
| Category | Board to Board Connectors |
| Series | 10120B Series |
Detailinformationen
| Connecting Type | Plug |
| Mating Interface | Stacking |
| Contact Direction | |
| Pitch | 2 mm |
| Pin Counts | 6 – 30 Pin |
| Plating Thickness | 0.1 – 0.12 μm Min. |
| Signal Transmission Speed | 1.3 Gbps |
| Width (Depth) | 11.6 mm |
| Rated Voltage (AC) | 125 V |
| Rated Current | 1 A |
| Impedance Matching | |
| Operating Temperature Range (Max.) | +125 ℃ |
| Array | Dual Row |
| Halogen Free | No |
| 2-Point Contact | Yes |
| Ground Terminal | No |
| Tape | No |
| Y-Axis Floating Range | 0.65 |
| Amplitude | 0.02 |
| Card (FPC) Retention Mechanism | |
| Package Quantity | 250 |
| PCB Mounting Methods | SMT |
| Connector Orientation | Vertical |
| Mating Direction | TopEntry |
| Solder Tail Pitch | 2 mm |
| Contact Plating | Gold |
| Signal Spec | |
| Length (Pitch Direction) | 14 – 38 mm |
| Height | 7.95 – 8.95 mm |
| Rated Voltage (DC) | 125 V |
| Withstand Voltage | 500 V（AC) |
| Contact Resistance | 50 mΩ Max. |
| Operating Temperature Range (Min.) | -40 ℃ |
| RoHS2 | Yes |
| Floating | Yes |
| Boss Locator | Yes |
| Cap | Yes |
| X-Axis Floating Range | 0.65 |
| Effective Wiping Length | 0.7 |
| Durability | 30 |
| Packaging Type | Emboss |
