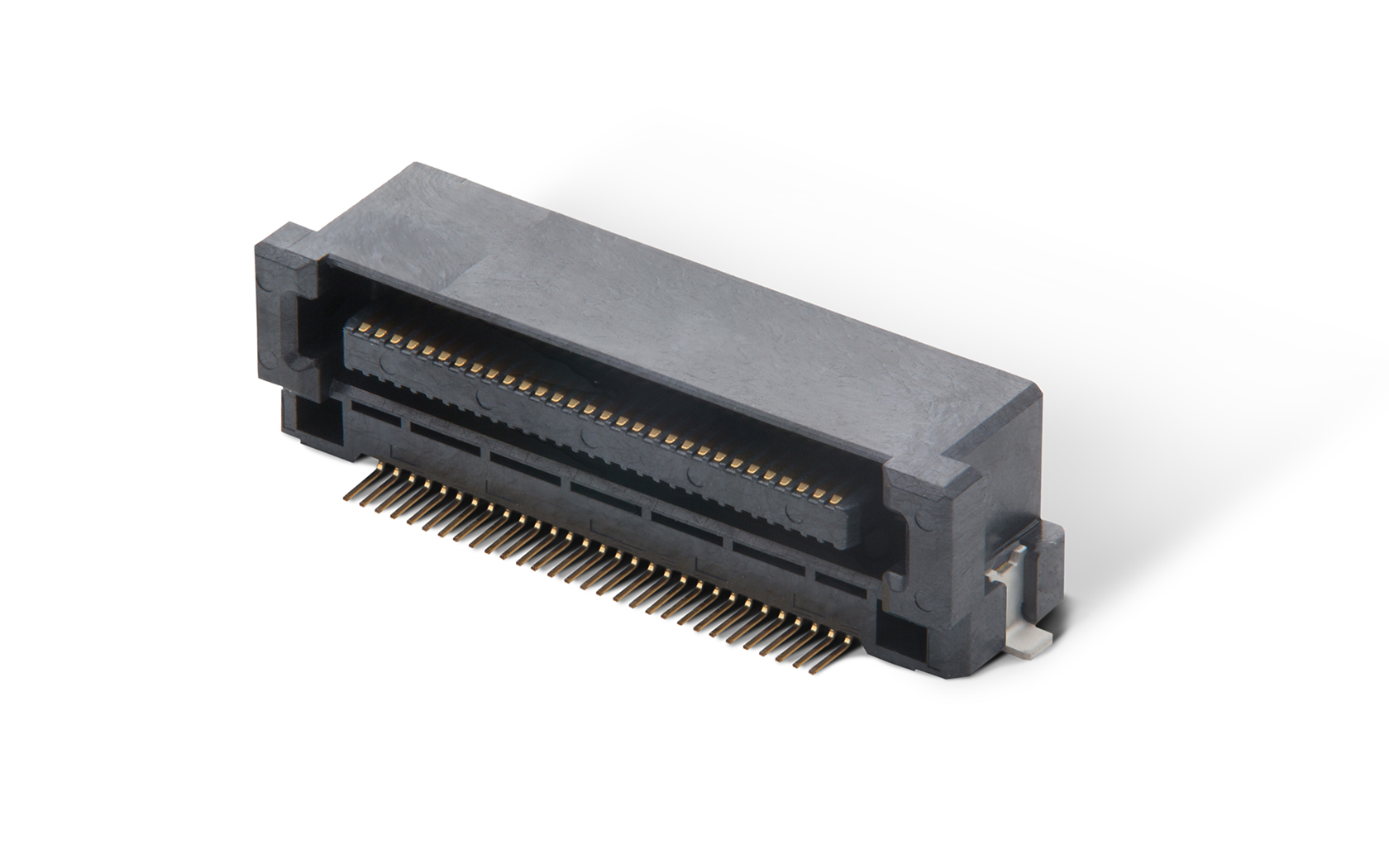

9828B Series
Floating / Robot Compatible / High Temperature Compliance
Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit que diatemquam veles sequam atiuagnit rem a aut libus adXimpore laborior sed moluptibus voluptate do. Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit qu
Product information
| Category | Board to Board Connectors |
| Series | 9828B Series |
Detailed information
| Connecting Type | Plug |
| Mating Interface | RightAngle |
| Contact Direction | |
| Pitch | 0.8 mm |
| Pin Counts | |
| Plating Thickness | 0.1 μm Min. |
| Signal Transmission Speed | |
| Width (Depth) | 7.75 mm |
| Rated Voltage (AC) | 125 V |
| Rated Current | 0.5 A |
| Impedance Matching | |
| Operating Temperature Range (Max.) | +105 ℃ |
| Array | Dual Row |
| Halogen Free | No |
| 2-Point Contact | No |
| Ground Terminal | No |
| Tape | No |
| Y-Axis Floating Range | 0.5 |
| Amplitude | |
| Card (FPC) Retention Mechanism | |
| Package Quantity | 300 |
| PCB Mounting Methods | SMT |
| Connector Orientation | RightAngle |
| Mating Direction | Top Entry |
| Solder Tail Pitch | 0.8 mm |
| Contact Plating | Gold |
| Signal Spec | |
| Length (Pitch Direction) | |
| Height | |
| Rated Voltage (DC) | 50 V |
| Withstand Voltage | 250 V (AC） |
| Contact Resistance | 100 mΩ Max. |
| Operating Temperature Range (Min.) | -40 ℃ |
| RoHS2 | Yes |
| Floating | |
| Boss Locator | Yes |
| Cap | Yes |
| X-Axis Floating Range | 0.5 |
| Effective Wiping Length | 0.5 |
| Durability | 30 |
| Packaging Type | Emboss |
