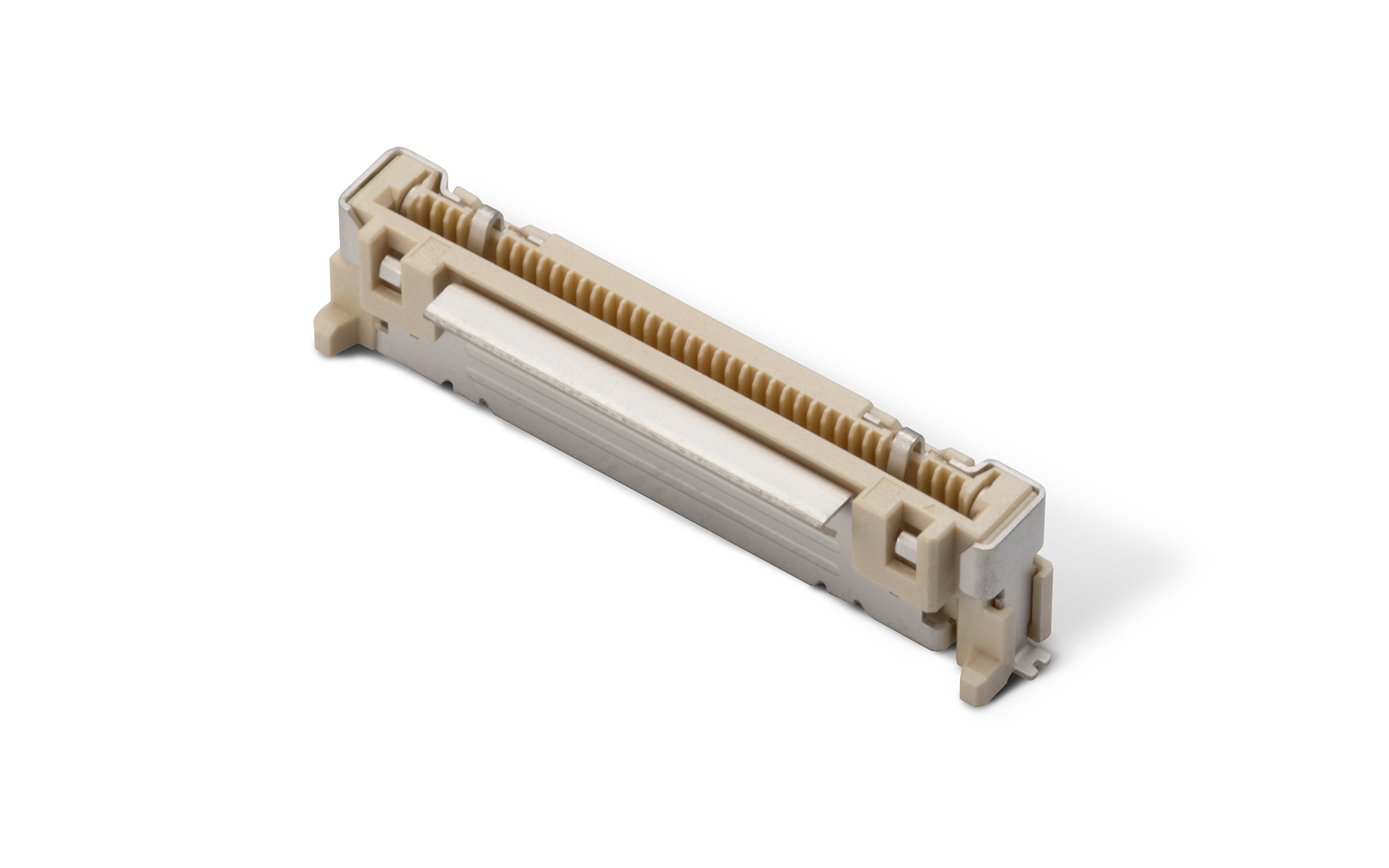

11600S Series
Auto Lock / Robot Compatible
Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit que diatemquam veles sequam atiuagnit rem a aut libus adXimpore laborior sed moluptibus voluptate do. Magnit rem a aut libus adXimpore laborior sed moluptibus voluptate dolessint facit qu
Product information
| Category | FPC / FFC Connectors |
| Series | 11600S Series |
Detailed information
| Connecting Type | Socket |
| Connector Orientation | Vertical |
| Pitch | 0.5 mm |
| Pin Counts | |
| Plating Thickness | 0.1 μm Min. |
| Signal Transmission Speed | |
| Width (Depth) | 5 mm |
| Rated Voltage (AC) | 50 V |
| Rated Current | 0.5 A |
| Impedance Matching | |
| Operating Temperature Range (Max.) | +105 ℃ |
| Array | Single Row |
| Halogen Free | Yes |
| Boss Locator | No |
| Wide Slider | |
| Locks | Auto I-Lock |
| Packaging Type | Emboss |
| PCB Mounting Methods | SMT |
| Connector Direction | Single Contact |
| Solder Tail Pitch | 0.5 mm |
| Contact Plating | Gold |
| Signal Spec | |
| Length (Pitch Direction) | |
| Height | |
| Rated Voltage (DC) | 50 V |
| Withstand Voltage | 250 V (AC） |
| Contact Resistance | 40 mΩ Max. |
| Operating Temperature Range (Min.) | -40 ℃ |
| RoHS2 | Yes |
| 2-Point Contact | No |
| Ground Terminal | Yes |
| Durability | 10 |
| Card (FPC) Retention Mechanism | Yes |
| Package Quantity | 1000 |
